Trampoline Park

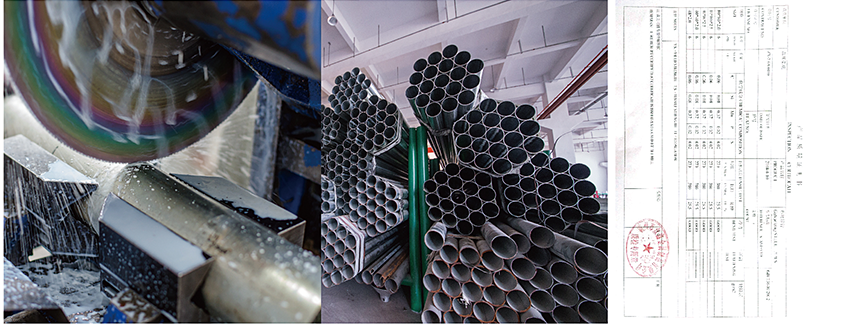

Metal Parts

Material: Galvanized Steel Pipes with anti-rust spray;
Noted: Color Powder Coated Available;
Specification:  80*80mm, 80*40mm, 40*40mm;
Thickness=2.5mm, 2.0mm, 1.8mm;
Acc. to GB/T3640/2002;

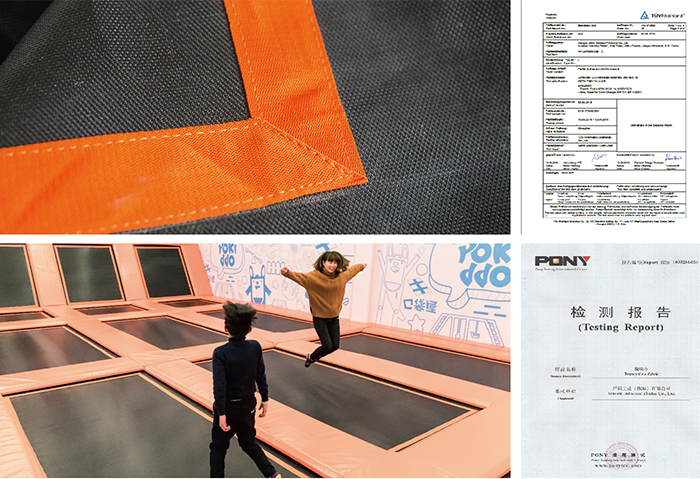

Trampoline Mats Standard Trampoline Mat:

Material: PP;
Noted: Tencate trampoline fabric Available;
Standard Size:2.03*2.03m;
Noted: Length is changable;
Standard Colors: Black;
Noted: Grey, Pink, Red, Green, Yellow, Sky Blue and Royal Blue Available;
Standard Trampoline Mat Acc. to:
Ultraviolet (UV) Resistant Materials Test (acc. to
ASTM F381-14, cl.6.6);
Evaluation:
- Tensile Test (ASTM D638-14, MODIFIED)
- Grey Scale for Color Change (AATCC EP 1-2007);
Tencate trampoline fabric Acc. to:
AATCC 16-option3, AATCC 8/116, AATCC 107

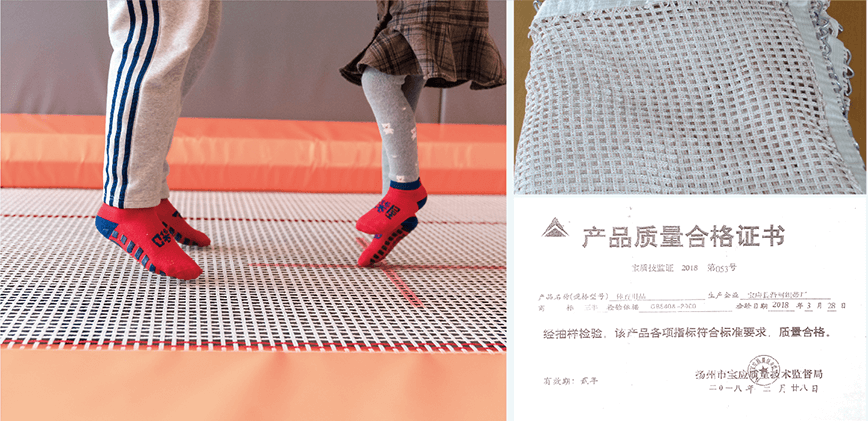

Gymnastic Trampoline Mat:

Material: Poly-amide Yarns;
Standard Size:4.26*2.13m;
Noted: 4.26*4.26m  Available;
Standard Colors: White;
Noted: Red Acailable;

Acc. to GB8408-2000;

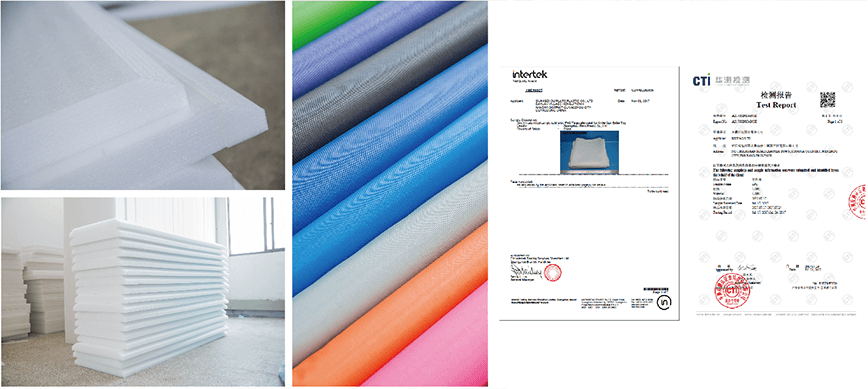

Soft Padding:

Material: 0.46mm pvc+70mm EPE

PVC: Acc. to EN71-2/-3
EPE: Acc. to GB/T 8332-2008;

Springs

Springs for Standard
/Gymnastic Trampoline Mat:
Material: 65MN;
Size: 3.2-180mm; 3.25-260mm; 4.0-265mm;

Acc. to GB/T 1222-2007;

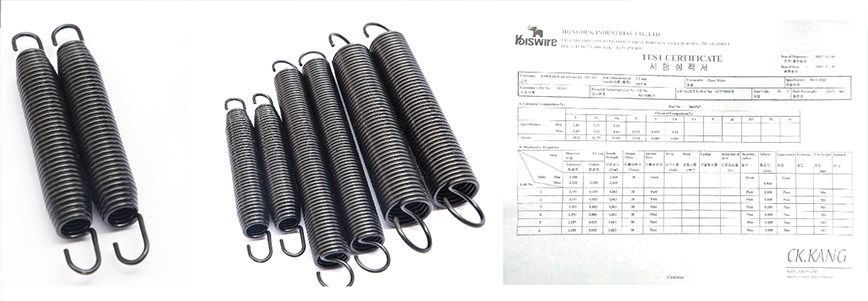

Paino Wire Springs

Paino Wire Springs for Standard
/Gymnastic Trampoline Mat:
Material: Imported Piano Wire;
Size: 3.2-180mm; 3.25-260mm; 4.0-265mm

Acc. to JIS G 3522;

Spring Buckle:

Material: Plastic, Metal;

Acc. to ;

Foam Blocks:

Material: PU;
Size: 20*20*20cm;
Standard Colors: Red, yellow, blue, green, orange, dark;
#40: 32KG/CBM

Acc. to RoHS;

Floorings:

EVA flooring;
Material: EVA;
Size: 3mm thickness;
Acc. to EN 71-1:2014, EN 71-2:2011+A1:2014, EN 71-3:2013+A1:2014

EPDM flooring;
Material: EPDM;
Size: 6mm thickness;
Acc. to GB/T 225176-2011, GB/T 14833-2011;

Artificial  Turf flooring;
Material: PE+PP;
Size: Grass Height 40mm, Stitches/SQM 16800, Dtex 9000;
Acc. to GB/T80394-2006;

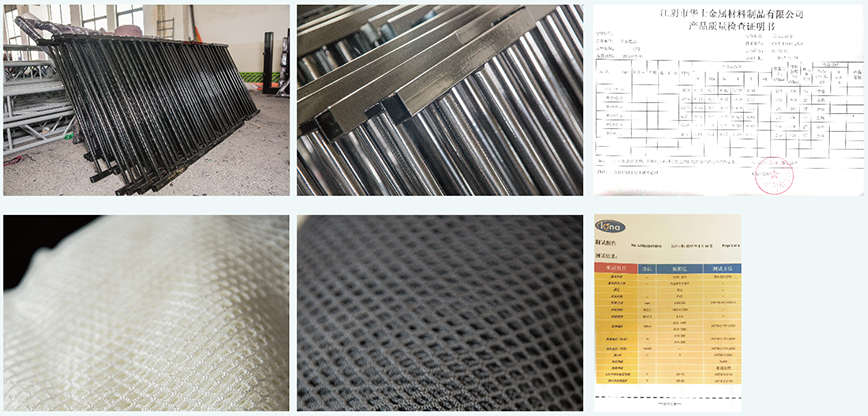

Safety Netting:

Metal Fence inside;
Material: Galvanized Steel Pipe with color powder coated;
Size: 1.2m high;
Acc. to GB/T 13793-2008;

Protection Nettings outside;
Material: Polyester;
Size: diameter 2mm, hole 8mm;
Acc. to DIN ISO 2076, DIN EN ISO 2286-2, ASTM D 751-2000, ASTM D 2565, ASTM D 2130, RoHS;

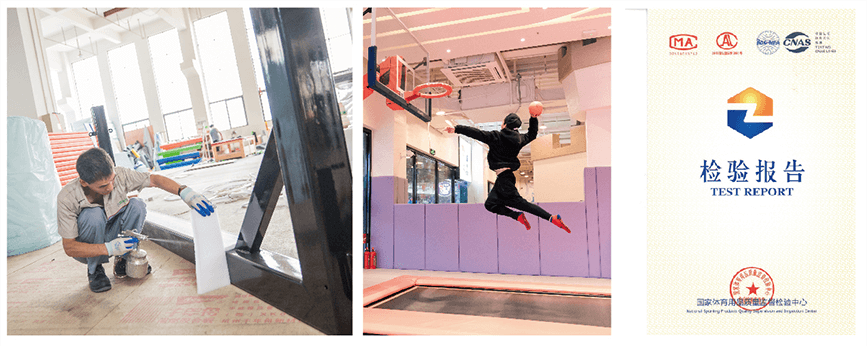

Basketball Hoop:

Mateiral: Superior tempered glass+Steel Pipe with Color Powder Coated;
Size: 150*150*3.75mm;

Acc. to GB23176-2008;

Indoor Playground

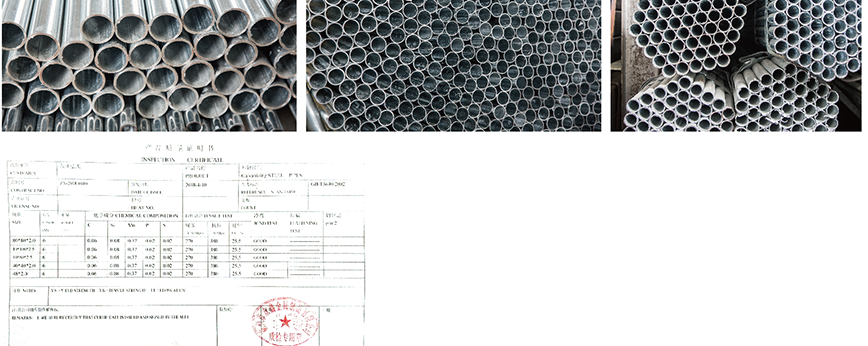

Metal Parts

Material: Galvanized Steel Pipes;
Specification:  φ48mm;
Thickness=2mm;

Acc. to GB/T3640/2002;

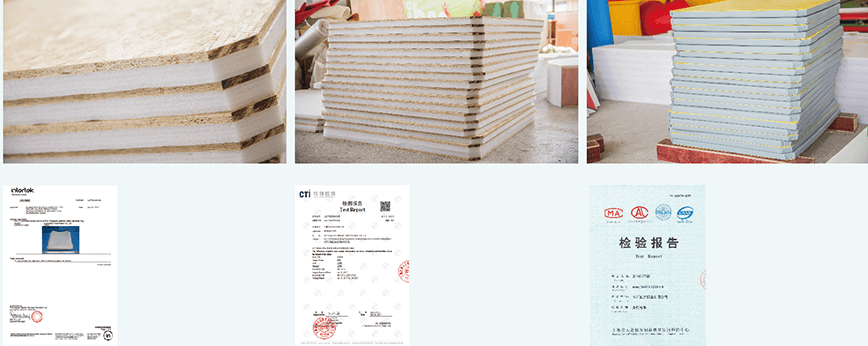

Soft Platforms:

Material: 0.46mm pvc+70mm EPE+1.5cm OSB

PVC: Acc. to EN71-2/-3
EPE: Acc. to GB/T 8332-2008;
OSB(OrientedStrandBoard): Acc. toLY/T 1580-2010;

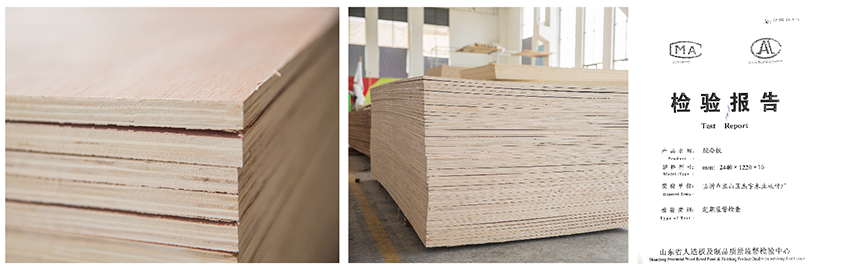

Plywood:

Material: 1.3cm thickness
Noted: Fire retardant board Available;

Acc. to BB18580-2001, GB/T9846.-2004;

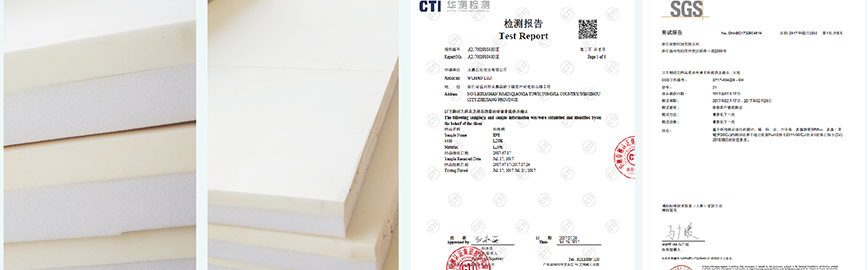

EPE&Sponge:

EPE: 2-4mm thickness for different games;
Sponge: 2mm thickness, density: 35;

EPE: Acc. to GB/T 8332-2008;
Sponge: Acc. to RoHS ;

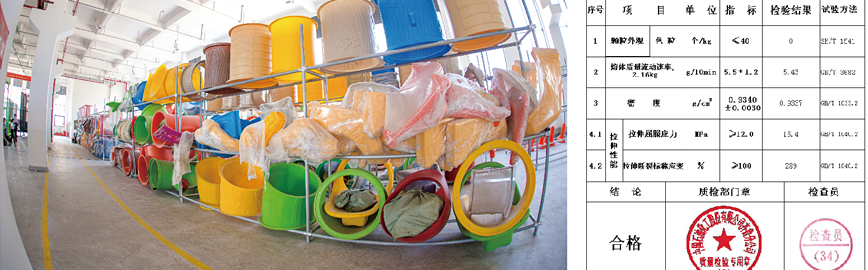

Plastic Parts:

Material: LLDPE;

Acc. to Q/SH 3160 399-2016;

Sea Balls:

Material: PE;
Size: φ8cm, 8g;
Noted: Logo Available;

Acc. to Q/SH 3160 399-2016;

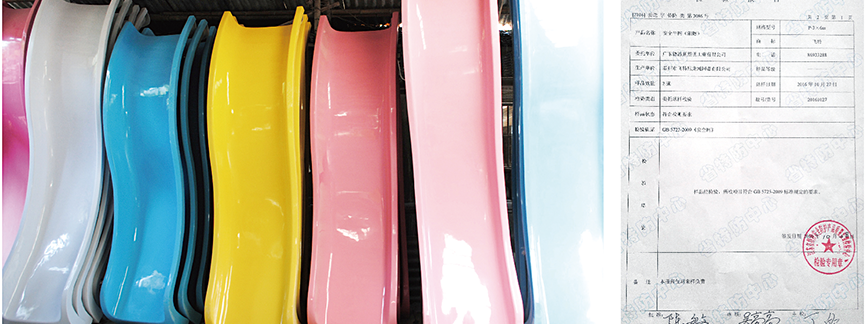

Fiberglass Parts:

Material: Fiberglass;

Acc. to GB6575.4-2014, GB6675.11-2014, GB6675.1-2014;

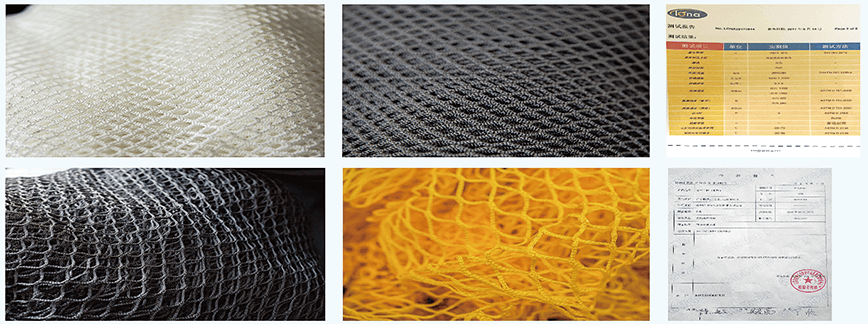

Safety Netting:

Material: Polyester;
Size: hole 40mm; φ2mm, hole 8mm;
Black, White, Yellow;
hole 40mm Acc. to GB5725-2009;
hole 8mm Acc. to DIN ISO 2076, DIN EN ISO 2286-2, ASTM D 751-2000, ASTM D 2565, ASTM D 2130, RoHS;

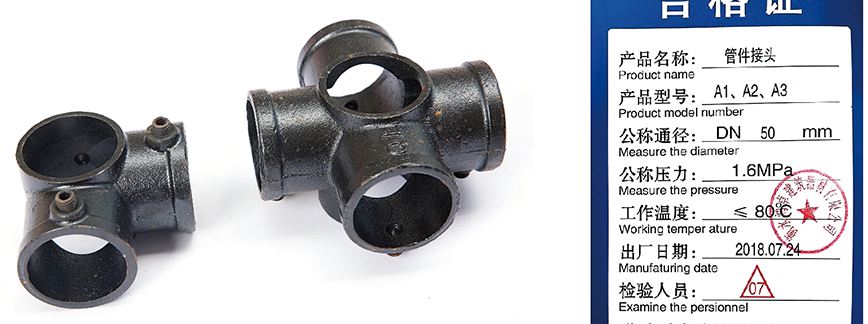

Cathers:

Material: Cast Steel;
48*2mm;

Acc. to GB/T15831-2006;

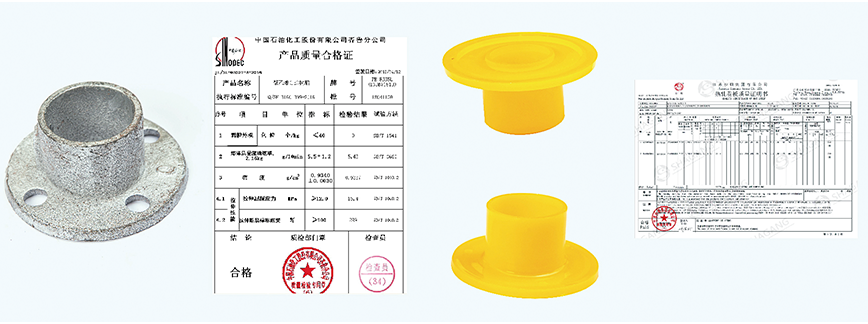

Pipe Bottom Plate:

Material: Plastic, Metal;
48*2mm;

Plastic Acc. to Q/SH 3160 399-2016;
Metal Acc. to GB/T 3274-2007;

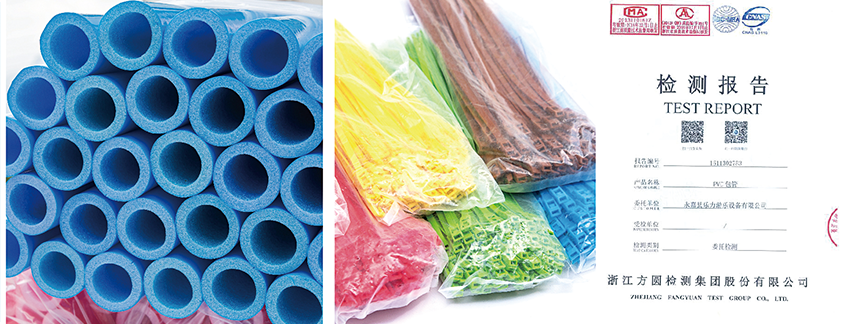

PVC Foam Pipes & PP ties:

Material: EPE+PE, Nylon;
48*2mm;

Acc. to GB 6675.3-2014, GB 6675.4-2014;

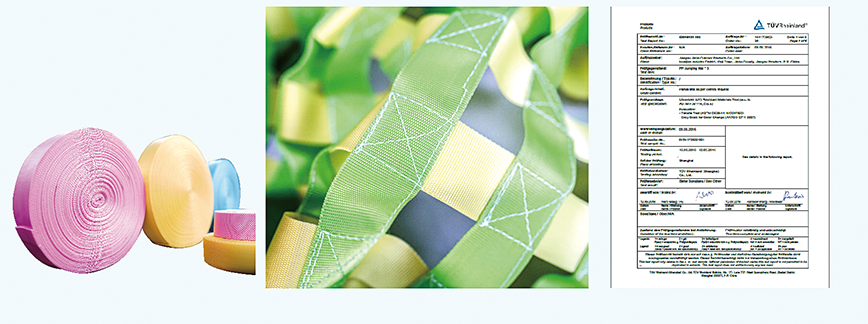

PP Ribbon:

Material: PP;

Acc. to Ultraviolet (UV) Resistant Materials Test (acc. to
ASTM F381-14, cl.6.6);
Evaluation:
- Tensile Test (ASTM D638-14, MODIFIED)
- Grey Scale for Color Change (AATCC EP 1-2007);

Indoor Ropes Course

Metal Parts

Upright Post:
Material: Galvanized Steel Pipes
Φ140mm Thickness=4mm;

Acc. to GB/T3640/2002;

Gliding Route Pipe:

Material: Galvanized Steel Pipes
Thickness=3.5mm;

Acc. to JIS G 4305-2012;

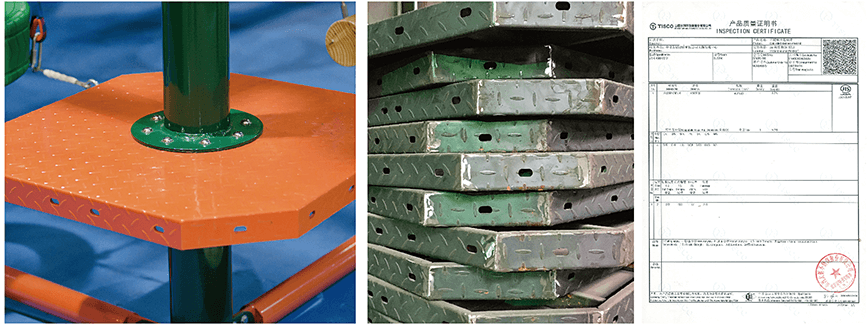

Decks:

Steel sheet: 80*80cm;

Acc. to JIS G 4305-2012;

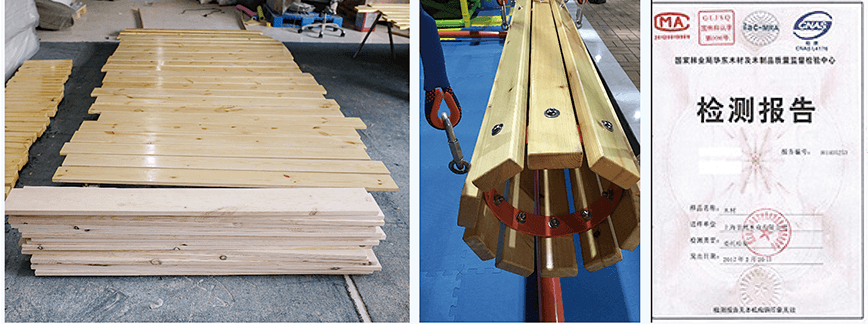

Wooden Games

Pinus sylvestris, thickness 4cm;
Air dry Density: 422kg/m3;
Weight bearing: 400KGS;

Acc. to GB/T 1.1-2009;

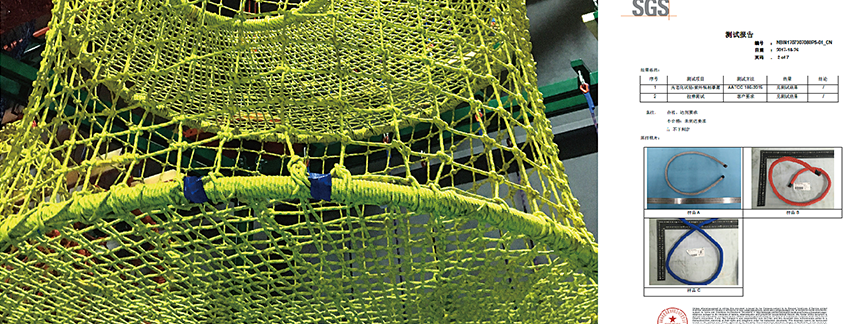

Net Games

Olyamide fibre, Dia: 1cm;
Weight bearing 300KGS

Acc. to ISO 105-A02:1993/Cor.2:2005;

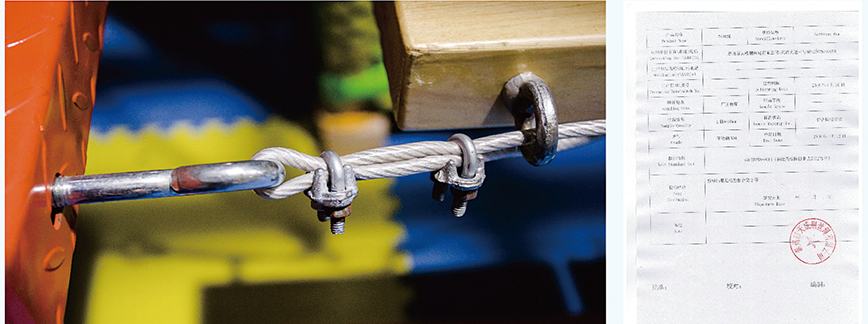

Steel Wire Rope

Size: φ6mm;

Acc. to GB/T8358-2014;

Safety Ropes

Size: φ12mm;

Acc. to ISO 105-A02:1993/Cor.2:2005;

Ninjia Warrior

Metal Parts

Material: Galvanized Steel Pipes
with color powder coated;
Size: 48*2mm;
Noted: Aluminum Frame Available;
Material: 6061-t6;
Size: 50*3, 32*2 , 25*2;

Galvanized Steel Pipes Acc. to GB/T3640/2002;
Aluminum Frame Acc. to JG13-2000;

Others

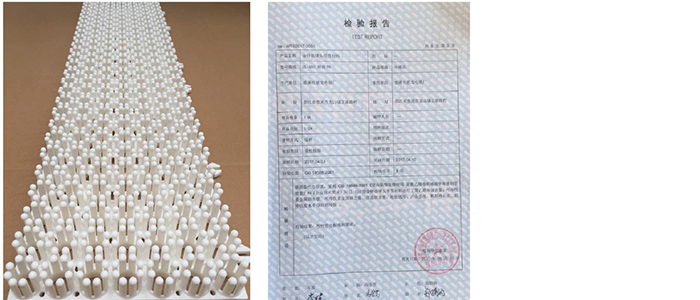

Surface in donut slides

Material :PE;

Acc to GB 18586-2001;

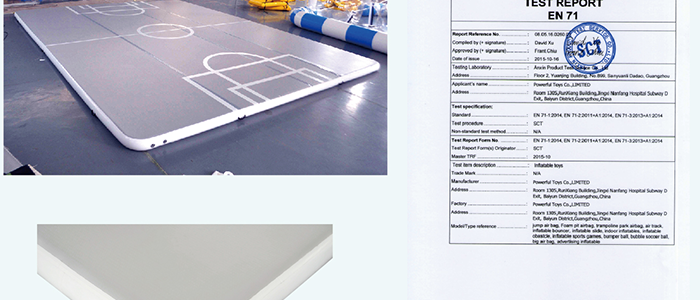

Air track

Material:DWF+0.9mmpvc tarpaulin;

Acc to EN 71;

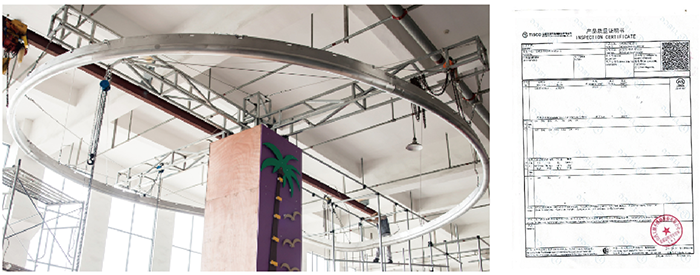

Roll glider

Galvanized pipe, stainless steel;
Size: 114mmx2.5mm;

Acc to JIS G 4305-2012;

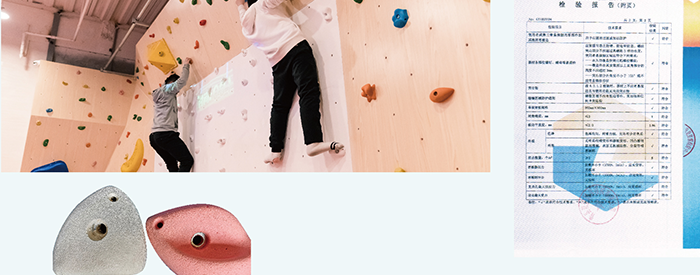

Climbing Rocks:

Material :FRP;
Size:different shape;

Acc. to:GB19272-2011

Slide

Material :FRP;
Size:different shape;

Acc. to:GB19272-2011
